The system includes:

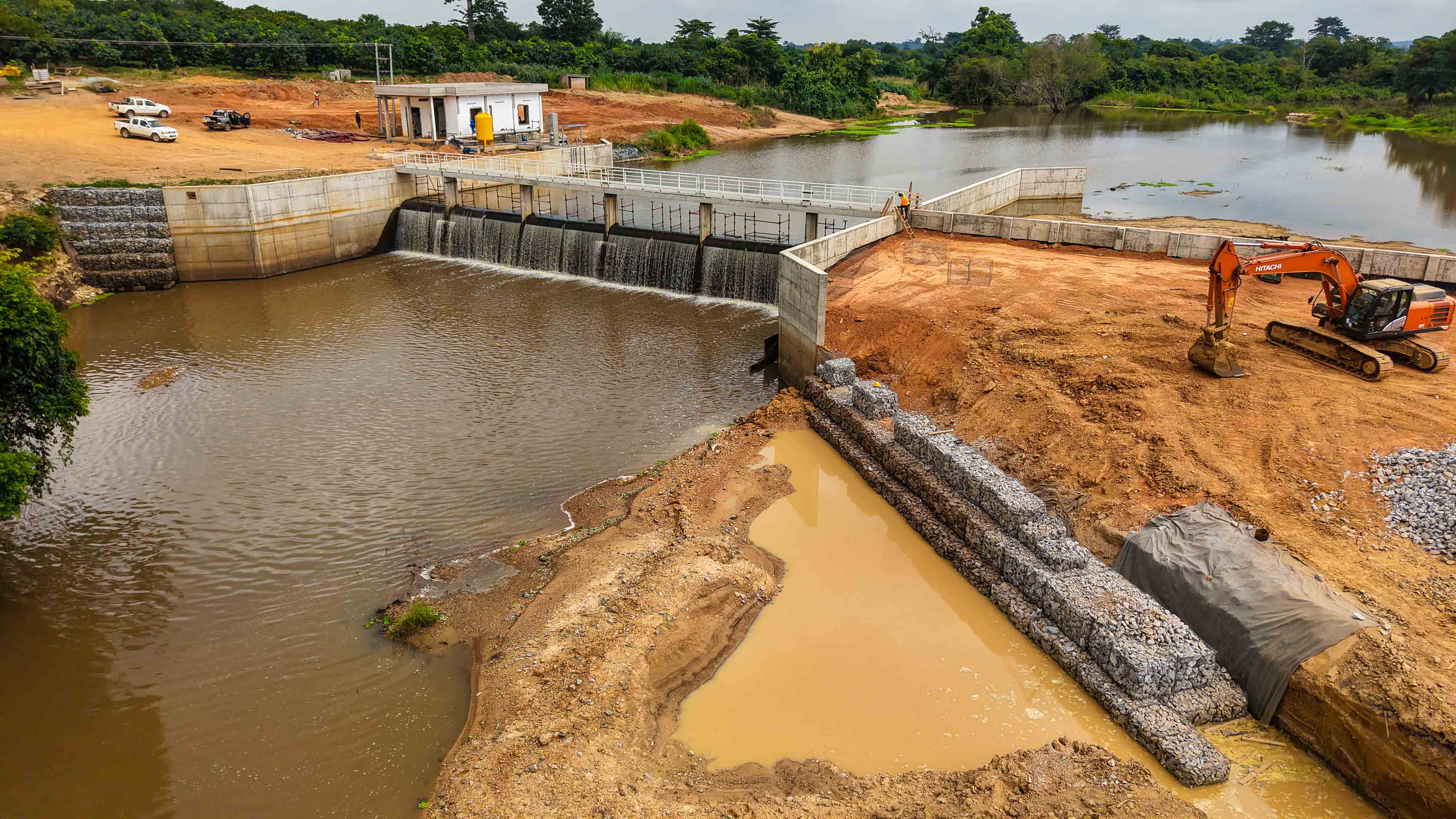

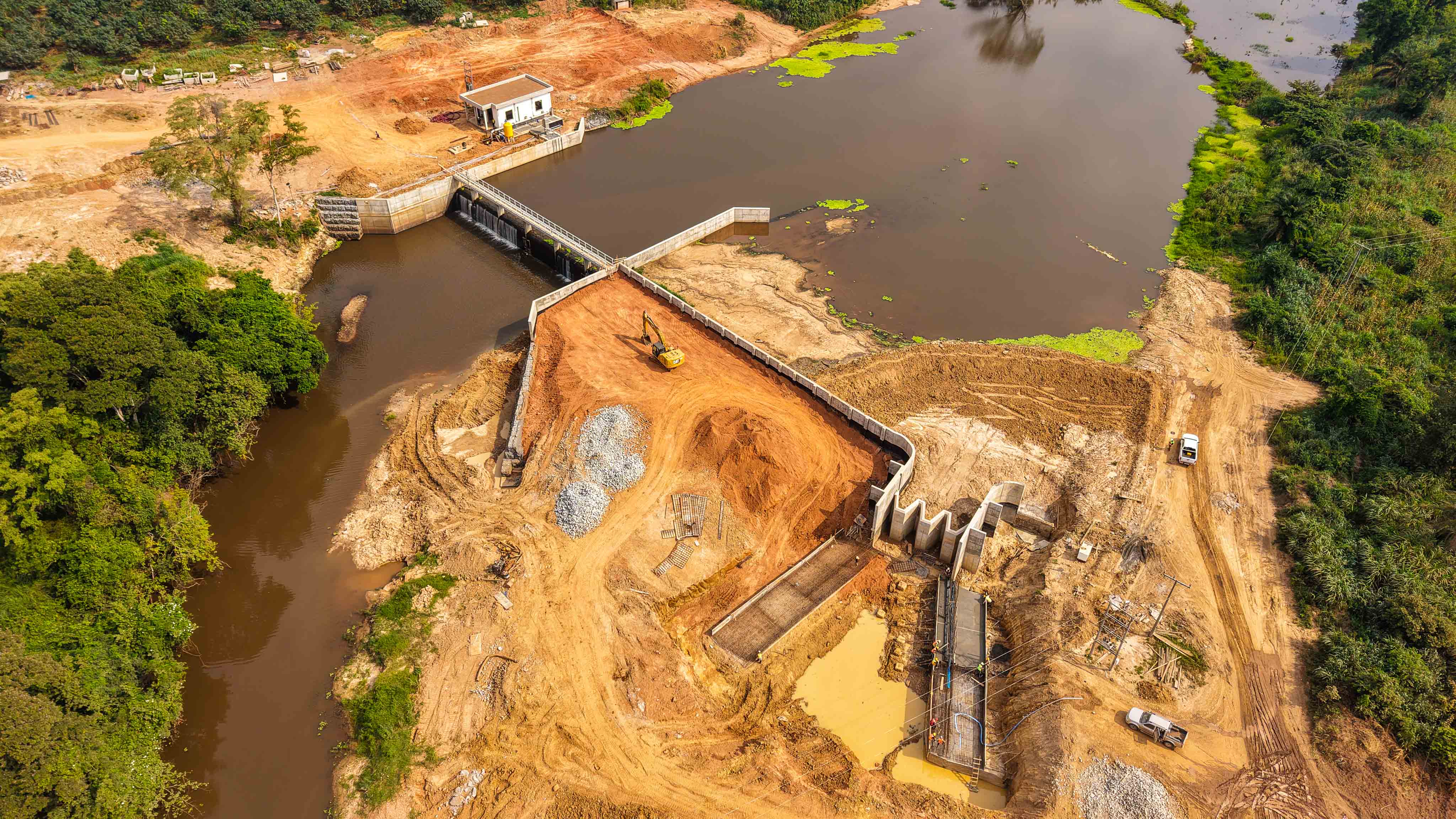

•  - Concrete weir on Tain river.
•  - Raw water catchment on Tain river.
•  - Raw water main HDPE OD450 - 1 km.
•  - New treatment plant (13,000 m³/day).
•  - Treated Water Pumping Station (12,500 m³/day, 250 m).
•  - Treated water main DI DN 400 - 13 km.
•  - New elevated storage tank (2,300 m³).
•  - 63km distribution network to supply water to 12 communities.





Services provided by ASPAC:
Engineering:

•  - Environmental and Social Impact Assessment (ESIA),
•  - Detailed designs and construction documentation,
•  - As-built-documentation.



Technical Assistance:

•  - Training of GWC staff (O&M, network management and improvement, SCADA - telemetry - PLC programming);



Construction and installation of equipment:

•  - Intake weir.
•  - Raw water intake.
•  - Raw water pumping station.
•  - Water Treatment Plant (sand trap, cascade, flocculation tank, lamellar sedimentation tank, gravity sand filtration, backwash buffer tank, treated water contact tank, sand drying beds, sludge drying beds, reagents dosing systems.
•  - Clearwater and backwash pumping station.
•  - Connection to the power grid.
•  - Construction of distribution networks.
